JYF-L8800A Fingerprint Lock

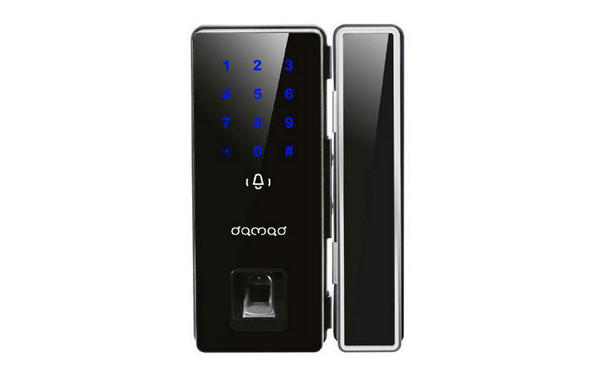

Fingerprint Lock--JYF-L8800A
Main Features :
.Fingerprint lock for glass door with handle
.Multiple unlock mode: Fingerprint ,Password,Smard Card and Combination Mode.
.High sensitive touch keypad with blacklight ,easy use even in the darkness
.Easy operation thanks to the humanity and clear voice guidance.
.Fingerprint sensor auto power on due to the IR senor embedded
.Support scramble code to protect the password security
.Doorbell built in?offers very convenience for the visitor?New !
.Auto unclock/close?with high quality motor inside.
.Support DIY installation just with a screw driver
.Powered by AA Battery and with low battery alarm
.Sweden FPC fingerprint sensor
.Low battery alert and support emergency USB interface
.Wrong try lock up function?(will lock up 1Min after 5times continues wrong input)
.Support external emergency battery input
.Support?Remote control?(Optional)

Main specification :
Model type JYF-L8800A
Material Zinc Alloy OLED display
Fingerprint Sensor Optical Sensor
Resolution 500 dpi
User Capacity 1000 Fingerprint , password + card 1000
FAR <0.0001
FRR <0.1
Card type 13.56MHZ
Lenght of password 3~13 digits
Temperature -20°C ~ 55°C
Humidity 20 %~ 80%
Power input 4 x 1.5V AA Battery
User capacity Fingerprint 1000 +Others 1000
Low battery warning voltage < 4.8V
Backup Unlock Mechanism Emergency battery & Mechanical key
Door thickness Glass door 12mm
Size L:195 x W:80 x H:29(mm)
