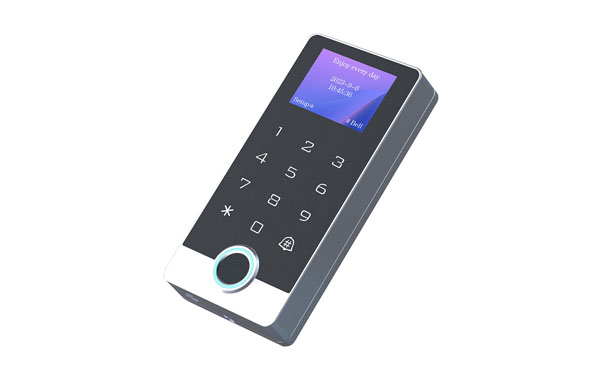

JYF-TF3LED-W Access Control System

Card Type Read 125KHz Card and HID Card(Optional
Read 13.56MHz Mifare card and CPU card(Optional)
Keypad Characteristic    Capacitive touch keypad
Output Way Contain reader mode, the transmission format could be adjusted
by user
Access Way Fingerprint , card,code or multiple combination methods, mobile phone App (Optional)
Admin CardAlarm Output Support admin add card and admin delete card
User Capacity 10000
Unlock Signal NO, NC, COM output using relay
Unlock Signal Use MOS tube output to directly drive the alarm (optional)
Operating Voltage DC12-24V
Standby Current  ≤60mA
Operating Current ≤100mA
Operating Temperature -40℃-60℃
Operating Humidity 0%-95%
Access ways Fingerprint, card, code, multiple combination methods, mobile phone App (Optional
