JYC-AT2001/T2001 Access Control System

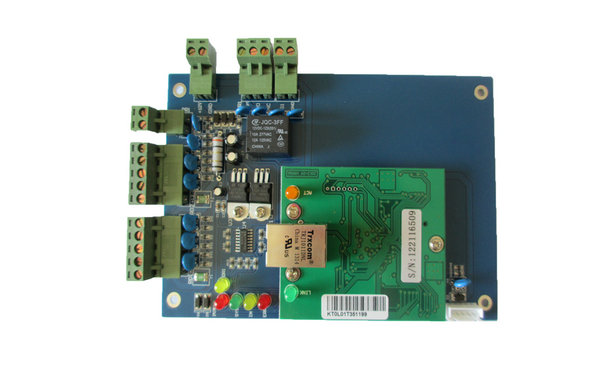

JYC-AT2001 Access Control System

JYC-AT2001 Access Control System one door

Unit Size 160mm *106mm
Unit Packing Way Brown box
Unit Packing Size 273mm*228mm*65mm
Accessories User Manual, warranty card
Function Introduction
Conventional Function offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map ,patrol, meeting,const meal etc.
Professional function for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.
all-in-one-card management system nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.
Parameter
Communication TCP/IP
English Software supportable database: SQL
Description Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button
Power Supply 12VDC; 4-7A
Power Consumption of Circuit Board Less than 100mA
Input Format of Reader Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
Quantity of Readers 2 Pcs
Door Controlled 1
Door opening time extending setting 1-600 Seconds(adjustable)
Max q ' ty of controller Unlimited

Operation Temperature -40℃-70℃
Operation Humidity 10-90 % RH , No Condensation
Q ' ty of users 20,000 Users
Q ' ty of Event Buffers(offline) 100,000 Event Buffers
Power interruption protection measure High Speed Memory, Records never lose
Max Distance from Reader to Controller 100M (suggestion distance 80m)
Max Distance between Controllers
Depand on network range
Collocations PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
Alarm for long time door open, ilegal break in, intimidate Yes
Fire and alarm linkage If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
Complsive open and close door at long time Yes
Open door in remote distance Yes
Inter block No
Anti pass back and tail Yes
Multi-card open door Yes
Open long time at specified time Yes
Electronic map Yes
Urgency locking Yes
First card unlocking Yes
Unlock based on internal and external validation Yes
Keypad (card+passwor, supper password) Yes
