JYF-T1 Tuya/TTlock Smart Door Lock

JYF-T1 Bluetooth Lock

JYF-T1 Bluetooth Lock SIZE

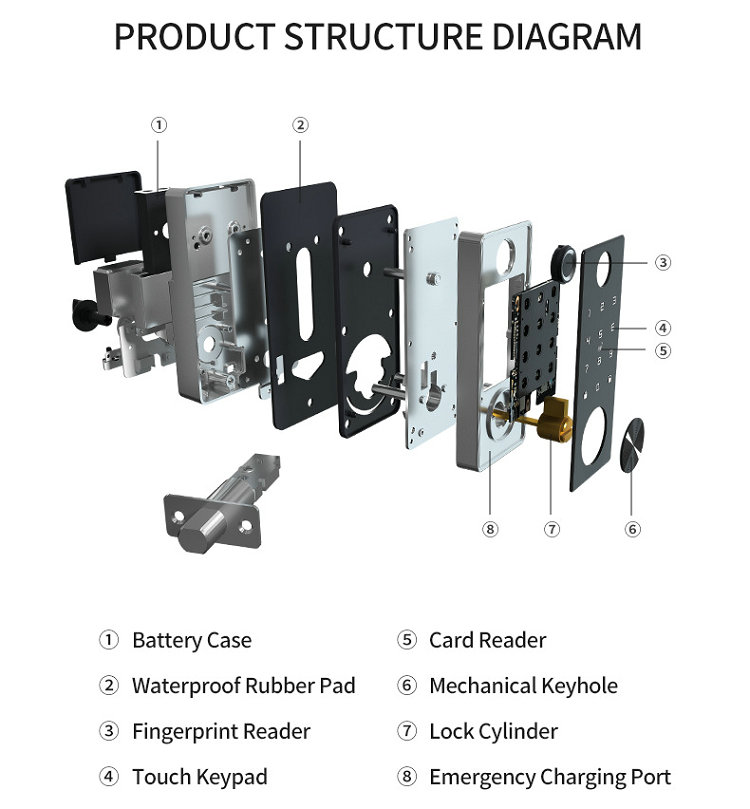

JYF-T1 Bluetooth Lock Exploded view

Material Aluminum Alloy
Door Thickness 35mm -55mm
Code length 4 to 10 digits
Working Temperature -20 to 70 ℃
Working Humidity 20% to 80% RH
Working Power Consumption <200mA
Static power Consumption 30uA
Power supply 6V ( 4pcs AA Alkaline batteries )
Unlocking Methods APP access, Fingerprint, Card, Password, Mechanical Key
User capacity Fingerprint 100 pcs, Card 1000 pcs, password 300 pcs
Size Front: 64(W) x144(H)x17(D) mm
Back: 73(W)x161(H)x48(D)mm
