JYF-F2121D Tuya/TTlock Smart Door Lock


JYF-F2121D WIFI TUYA Lock Function

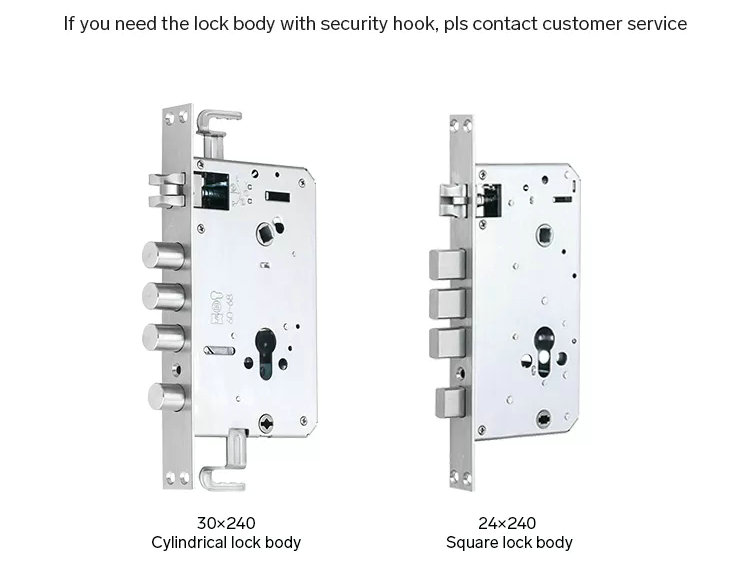

JYF-F2121D WIFI TUYA Lock lock body

JYF-F2121D WIFI TUYA Lock lock cylinder

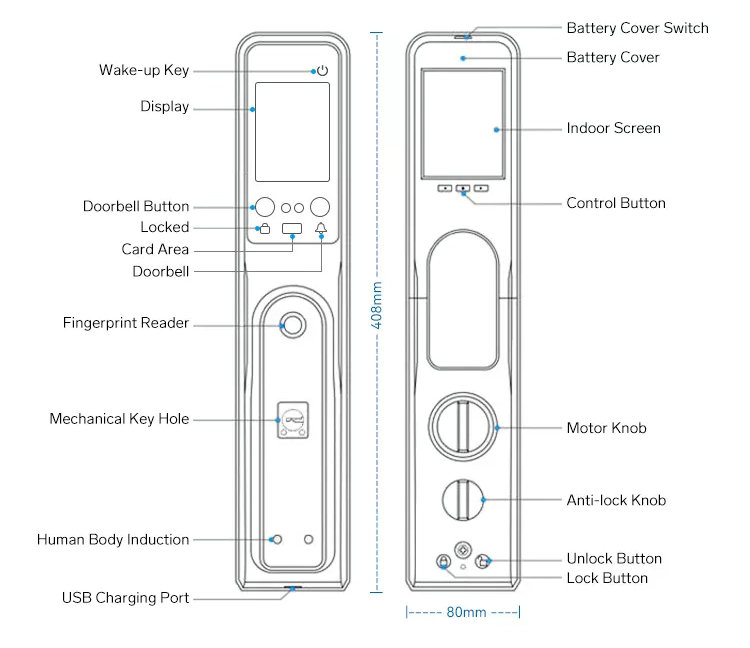

JYF-F2121D WIFI TUYA Lock area description

  Security Digital Doorbell Tuya APP Wifi Screen Smart Palm print Fingerprint Face Recognition Camera Door Lock

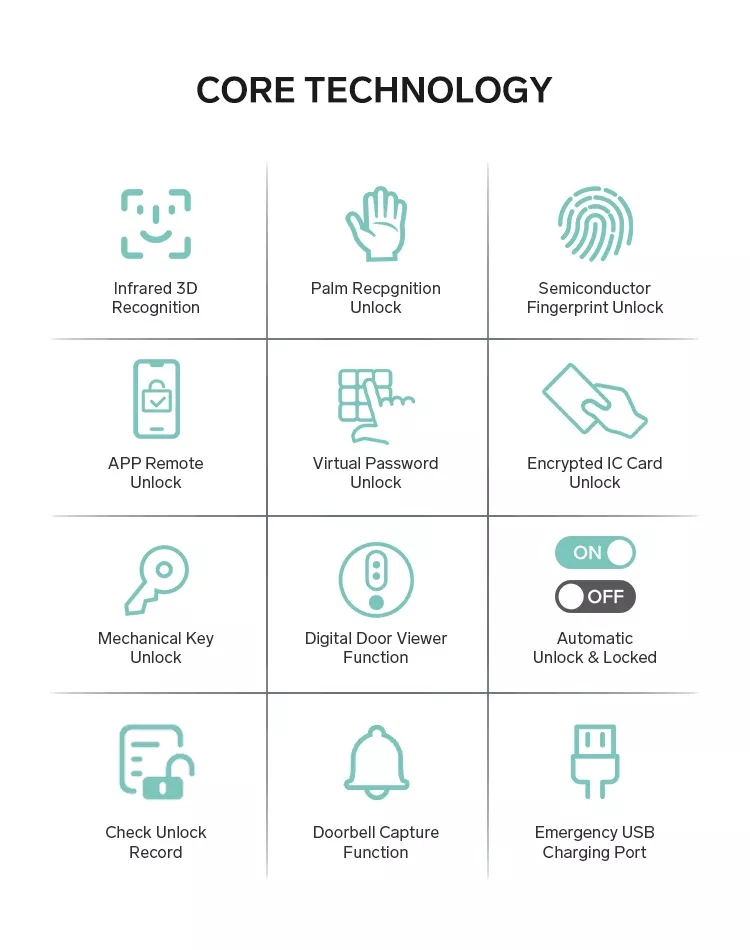

  Product Function:

  1.Unlock way: Fingerprint,Card, password,key, Tuya Wifi APP,Face Recognition;

  2.Emergency external power:USB power supply; 3.Fingerprint Recpgnition 5.0 technology effectively prevents fake fingerprints; 4.This product left and right open direction of the free interchange;

  5.The battery's life expectancy depends on battery type or using habits.Under the laboratory testing conditions it using around 4-5 months;

  6.Automatic anti-lock: after ulocking, the bolt(main latch) stretch out automatically. And this function can open or close;

  7.When the doorbell rings, your phone will receive the request to unlock the lock,you can remote unlock in the APP;

  8.Convenient APP management system, you can manage your smart lock anytime and anywhere;

  9.Face Recognition Function:45 degree tilted screen with ergonomic design.0.5 second fast unlocking;

  Also Lnfrared 3D Recognition:Can fast identify forehead,eyeball,ear,nose,chin,mouth,etc;

  10.When the doorbell rings,the indoor screen will automatically show the situation out side the door;

  11.We can customize production according to your requirements,OEM/ODM.

Material Zinc Alloy
Available color Black/Red Bronze
Application Hotel,Home,Office,Apartment
Communication mode Tuya Wifi APP
Battery life 15000 times normal open (12 months)
Power supply 4200mAh Lithium battery
unlock way App,Fingerprint, Palm Print, Code,Card,key, Face Recognition
Fingerprint capacity 100
Fingerprint +Card+Password capacity 266
working temperature -25~55 degree
working humidity 10%-95%
Single Size 408*80mm

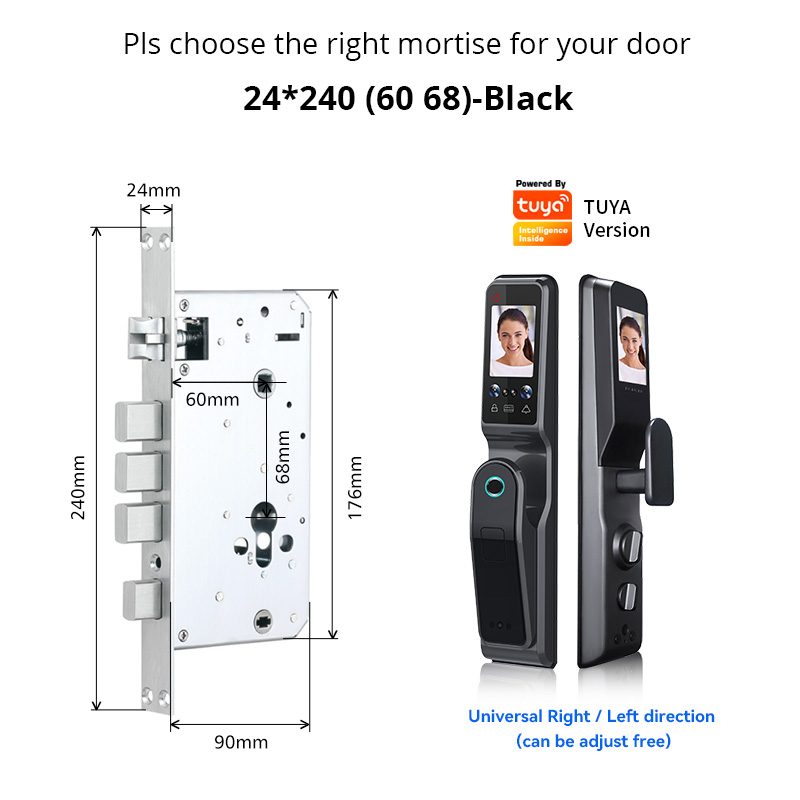

Mortise 6068
supportdoortype Stainless Steel door/Aluminumdoor/Wooddoor/Brass door
Doorbell Function YES
Auto-lock Function YES
Face Recognitinon Function YES
USB back up power YES
OEM/ODM Serivces YES
Warranty 2 years
