JYF-S1 Tuya/TTlock Smart Door Lock

Applicable door type glass door, aluminum door with frame, wooden door, sliding door
Door type specification door gap 3 ~ 10mm
(a) Frame-less door with the 8~12mm thick glass, the 8mm glass needs to install the thickening plates.
(b) Door with the 40-70mm thick frame. (door gap 3~10mm)

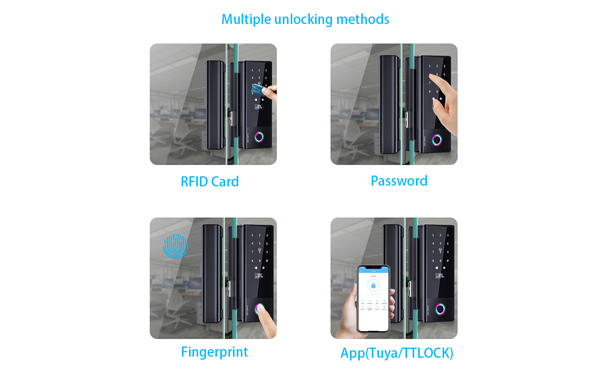

Unlocking methods fingerprint, password, card,Bluetooth, temporary password, Mechanical key unlocking (no key for framed door)
Optional Bluetooth mini-program, Bluetooth attendance,RF Remote control, WiFi remote unlocking
Mechanical key unlocking key inserted into the lock core hole, rotate 90° counterclockwise to unlock Key back to the horizontal

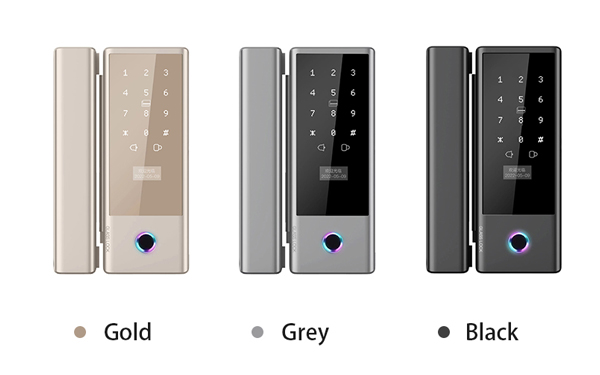

Colors Matte black, space gray, champagne gold
Material ABS+Acrylic
Fingerprint speed ≤0.35
Door opening mode applicable push or pull, induction left open/right open
Product weight about 1.25kg
Working temperature -25 °C ~+65° C
Emergency power supply USB Type-C
Power supply 4pcs 1.5V AA alkaline dry batteries
Storage capacity fingerprint (100) card and password( 1000groups)
Card type M1, IC
Fingerprint sensor semiconductor biometric identification
Static power consumption ≤ 120uA
False reject rate ≤ 1%
False accept rate ≤ 0.001%
