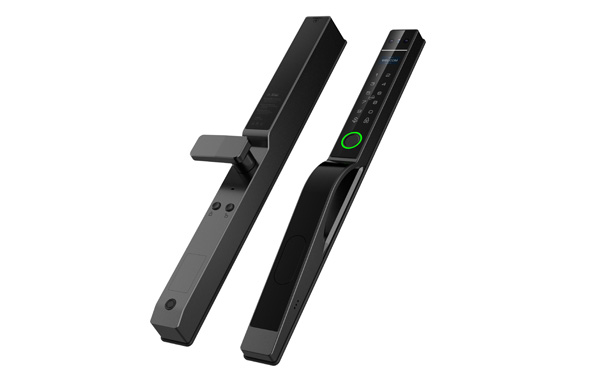

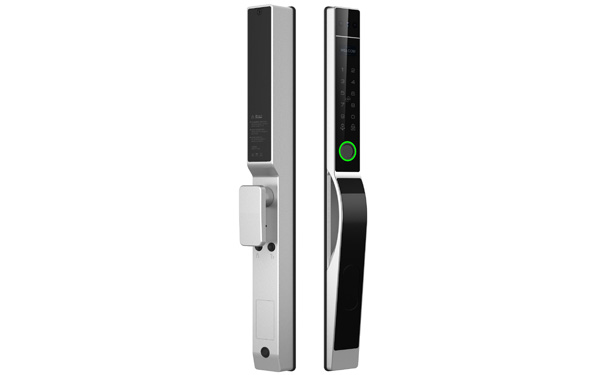

JYF-Z1ROMAX Tuya/TTlock Smart Door Lock
| Product Name | Automatic Aluminium Smart Lock |
| Material | Aluminium alloy |
| Touch panel material | toughened glass |
| Colour | black/Silver |
| Surface treatment | Baked paint |
| Power supply | 4000mAh lithium battery |
| Option | Tuya |
| TTlock | |
| Remote unlocking | |
| Profile Thickness | 40MM-120MM |
| Net weight of single handle | 1.24KG |
| Colour box size | 445*195*115MM |
| Gross weight of single handle | 2.22KG |

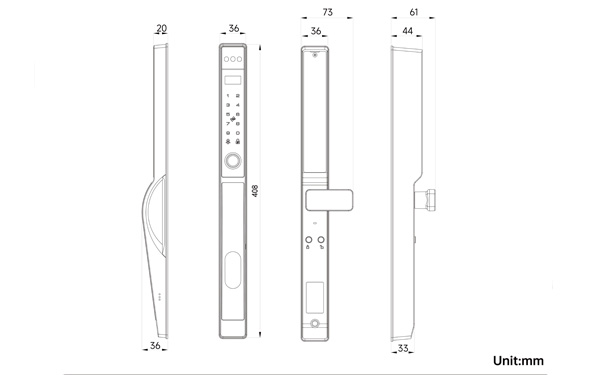

| Dimensions (L*W*H) | Front: 408*36*36MM Back: 408*36*61MM |
| Handle mode | The same handle supports horizontal and vertical mounting |
| System Language | Chinese/English |
| Voltage range | 7.4V |
| Emergency power supply | Type-C interface |
| Void code | Yes |
| Low voltage alarm | Yes |
| Trial and error alarm | Yes |
| Anti-pry alarm | Option |
| Anti-static test | level 4 |
| Anti-electromagnetic interference | Support |
| Battery life | Normal continuous opening 4000 times |
| Handle opening and closing life | ≥100,000 times |
| Protection grade | IPX5 |
| Lock body specification | 2085/2885/3585/4585/double hook single point 2885/3585/Double Hook Multi-Point 2585/2885/3585/4085/4585/5085/6085/7085/3585(330)/flush single point 2885(270)(330)/3585(270)/3585(330)/4085(330)/4585(330) Flush Multi-point |
| Ambient Temperature | -30℃~60℃ |
| Ambient humidity | 20%~93% |
| Rejection rate | ＜0.1% |
| False recognition rate | ＜0.005% |
| Unlocking method | Standard: face (50), palm vein (50, TTlock does not have this function), fingerprints (100), passwords (199 groups), cards (199), mechanical keys (2), WeChat applet SweetHome temporary passwords |
| Optional: remote control, mobile phone APP (Tuya smart, TTlock, choose one of the two) |
