JYC-LH192 Hotel Lock System

Time：2026-01-14      Class：Hotel Lock System     Browse：

Panel material	Stainless steel
Card specification	Mifare 1 card
Card capacity	2000
Door opening method	room cards
Door locking method	Automatic locking when closing the door
API integration	Support PMS integration
Operating temperature	-20℃- + 60℃
Relative humidity	20RH—95RH
Operating voltage	DC6V
Alarm voltage	4.1V
Startup time	0.5S
Static current	20uA
Dynamic current	180mA
Power supply	4 batteries of 1.5V alkaline type
Battery life	10 to 12 months
Lock body size	Standard five-key lock body
Frequency	13.56Khz
Unlocking record	Online query via APP (stores the latest 5,000 records)
Net weight	2.8KG
size	290x77mm

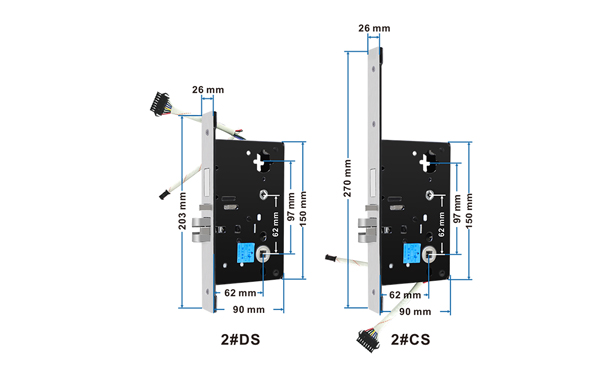

Mortise	2#DS
