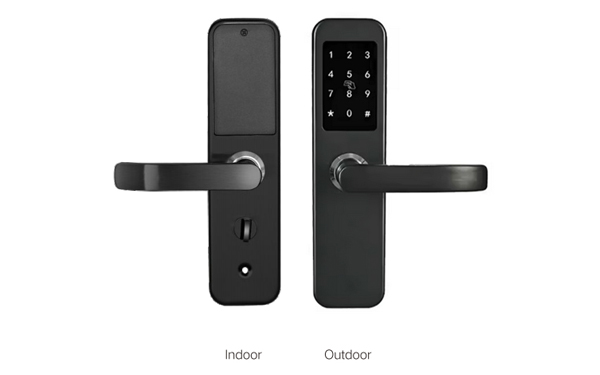

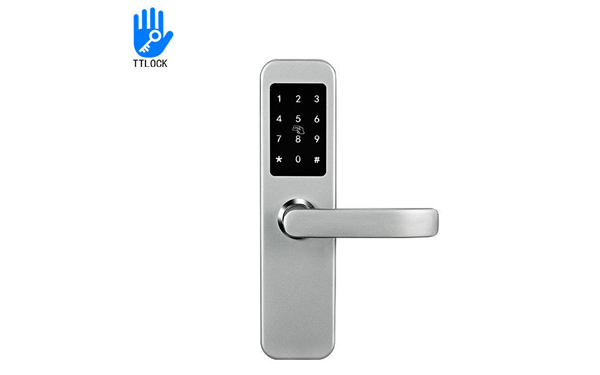

JYL-3058T TTlock Hotel Lock System
| Material | 304 Stainless Steel |
| Optional Colors | Silver, Gold, Red Bronze, Black |
| Unlock Method | App,password,card, Key |
| Induction Time | <1S / Less than 1 second |
| Card Capacity | 255 Pcs / 1-255 Pcs |
| Card Frequency | 125KHz (T5557) / 125 KHz (D801-57) |
| Card Distance | <3CM / Less than 3 CM |
| Battery | 4 pcs AA Alkaline Batteries |
| Low-voltage Alarm | <4.8V Support (Less than 4.8 V) |
| Quiescent Current | <20 μA / Less than 20 μA |
| Ambient Temperature | -20°C - 60°C |
| Card Type | Temic T5577 / Mifare 1 (D801*M11) |
| Card Frequency (Alternative) | 13.56MHz (M1) / 13.56 MHz (D801-M11) |
| Working Voltage | 6V |
| Dynamic Current | <120mA / 120 mA |
| Applicable Door Thickness | 38-70 MM (Can be Customized) |
| size | 250*62*25mm |
| Mortise | 5050 ( standard), optional: 50 60 70、 5050、5572、6085 |
