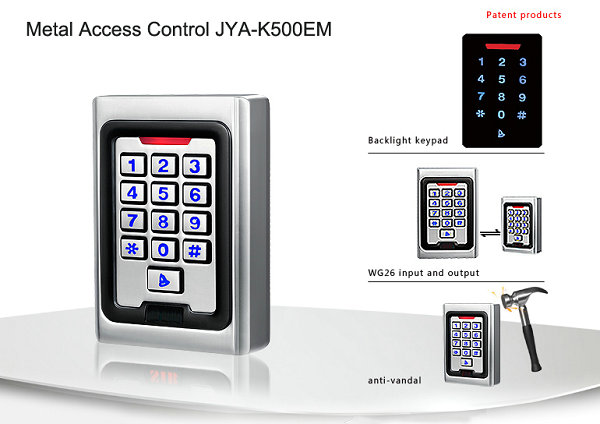

JYA-K500EM/MF Access Control System

JYA-K500EM Access Control System


  Model Number : JYA-H500EM/MF

  Brief Introduction :

  The unit is a single door multifunction standalone access controller, which is an ideal choice for door access for shops, households, commercial and industrial applications, such as, factories, warehouse, laboratories, banks and prisons.

  Main Features :

  .Metal hosing, vandal-proof and keypad with back light, IP65 waterproof

  .Three kinds of unlock way: password, card, password and card

  .With Anti-theft alarm output for external alarm device

  .With bult-in-anti-theft equipments

  .Support enrolling cards continuously

  .Perfect design, with backlight and fashion silver finish

  .Strong standalone function device, can be used as WG26reader alone

  .Support only keypad

  .Users can reset private passwords

  .Wiegand output W26 for card and W34 for codes

  .Use keypad to delete lost cards for safety

  .Short-circuit protect: when relay or alarm output short circuit, it will shut up in 100µS

  Main specification :

Working Voltage DC12V-24V
Environment Temperature -45~60 degree
Environment Humidity 10%~90%
Electric lock output: less than 3A
Alarm output less than 20A
Output short-circuit protection time ≤100µS
Open-door time 0~99 seconds (adjustable)
Size 110×75×25mm
Capacity 2000 user's cards,2000 codes
Reading card distance 5cm (thick card 8cm)
Access ways cards, code, card + code
Lower power static current less than 25mA
Waterproof IP65
Card type 125KHZ EM card/Mifare Card
