JYC-17/18/19/20E(M) Metal RFID Reader Access Control System

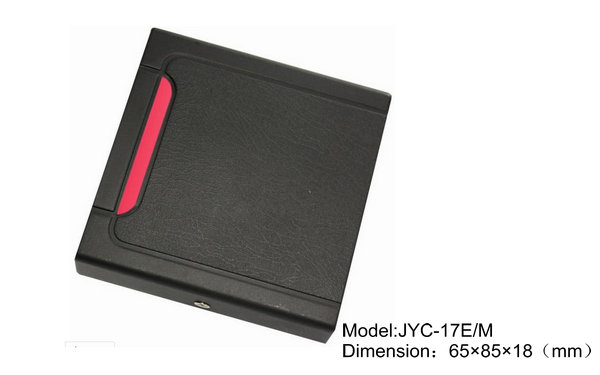

JYC-17E(M)

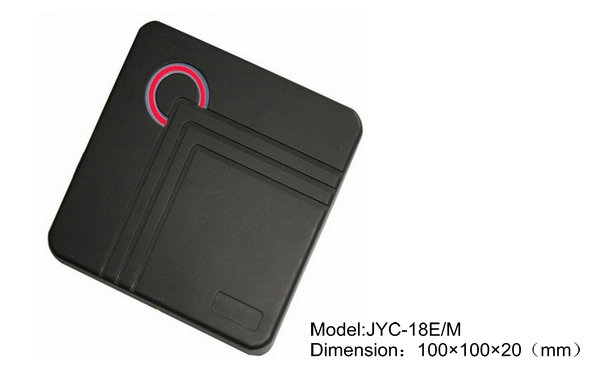

JYC-18E(M)

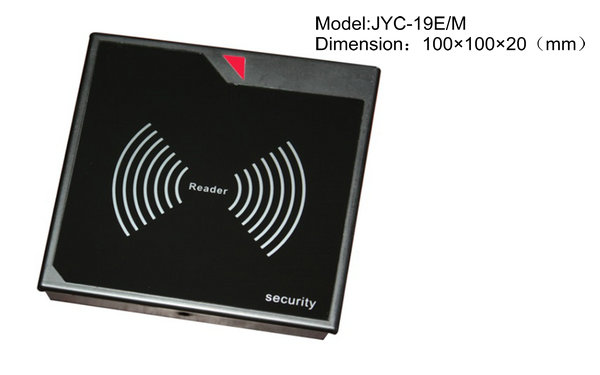

JYC-19E(M)

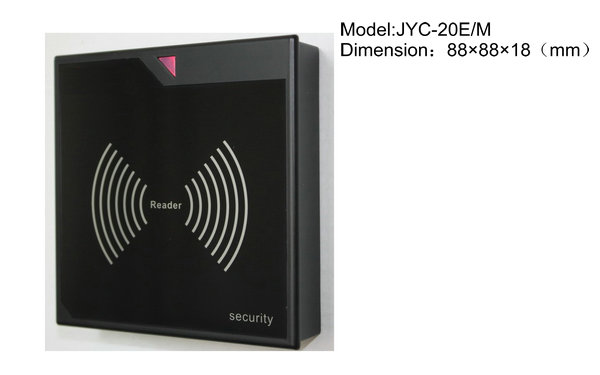

JYC-20E(M)

　　Main Features :

　　.Wiegand 26 Access Control card reader

　　.For EM cardor Mifare card

　　.125khz

　　.Wiegand 26/34

　　Connection:

　　Red ----------------------DC12V

　　Black---------------------GND

　　Green---------------------D0

　　White---------------------D1

　　Blue----------------------LED

　　Yellow-------------------BEEP

　　Grey---------------------Ring

　　Purple-------------------Ring

　　Main specification :

Read Range	Up to 10CM
Working current	≤100mA
Power / Current	DC 9-12V / Max.70mA
Input Port	2ea (External LED Control, External Buzzer Control)
Output Format	26bit Wiegand (default)
LED Indicator	2 Color LED Indicators(Red and Green)
Beeper	Yes
Operating Temperature	-20° to +65°C
Operating Humidity	10% to 90% relative humidity non-condensing
Color	Black
Material	ABS+PC with texture
