JYL-L21P Locker Lock

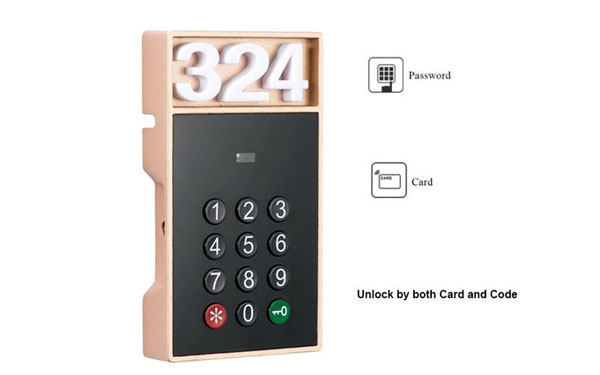

Unlock way Password,card
Door thickness 15-30mm
Door type Wood door ,Stainless Steel door ,Aluminum door ,Brass door
Battery 4 pcs 1A 1.5V
Emergency port Yes
Certification CE FCC ROHS
Static Power Supply <10u A
Dynamic Power Supply < 150mA
Material Zinc Alloy

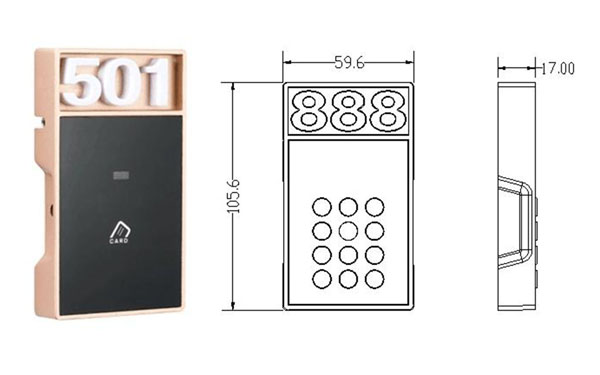

Size 105.6x60x17mm
Alarm Voltage below DV4.8V with lack of voltage indications and can use about 200 more times
Lifetime of battery normally can exceed 20,000 times and 200 more with low energy indication
Latch length 15mm
Working temperature -30~+70 °C


  Applicable to agent, school, SPA/sauna bath center, swimming pool, gymnasium,golf course, supermarket,hotel, company, factory, household, business clue, etc. Features


  1. Our door lock has the function to unlock the door automatically , when you use wrist card key to unlock, the door will unlocked automatic,so you don't need to install door handle.

  2. Two open solution : single card solution and dual card solution.

  3. Low power alarm to remind you to change the batteries, external power is free!

  4. Set up management card and guest card just on the cabinet lock but not need from the computer . Sound and light indicate when it works ,blue light shining when low battery.

  5.Mortise will come back automatically when there is obstruction and will indicate there is obstruction.

  6.Deadbolt function.
