JYC-LH2003 Hotel Lock System

Hotel Lock System JYC-LH2003

Hotel Lock System JYC-LH2003

Hotel Lock System JYC-LH2003

  Model Number : JYC-LH2003

  Introduction :

  The intelligent hotel card lock system offers standalone solution to meet hotel’s demand on security and management, which features MF temic card technology and hotel management software. The style and color of lock fit any type of hotel.

  With the hotel management software.

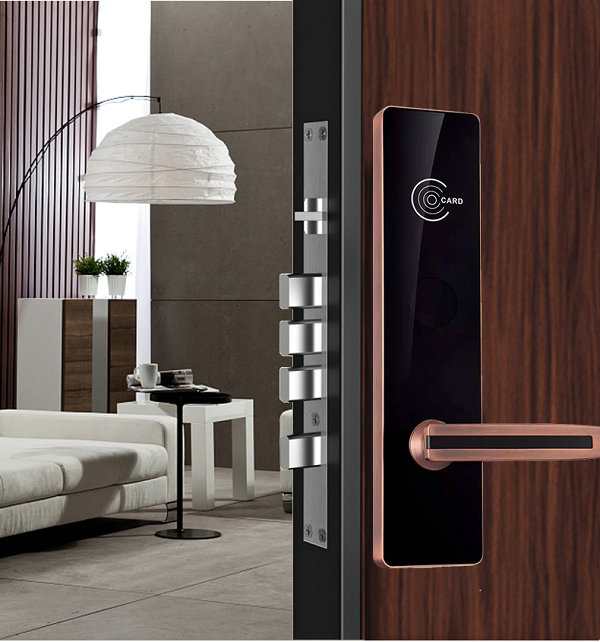

  The body of lock is made by stainless steel which is strong enough to protect the system from any considerable outside impact. Lock is powered by four high-capacity alkaline AA batteries that can last up to 20,000 unlocking activities.

  Main Features :.Stainless steel, elegant and firm.

  .U.S standard five-latch mortise.

  .Door thickness required from 35mm to 55mm.

  .Low voltage warning.

  .Access record checking.

  .Multi-language software.


  Main specification :

Material Stainless steel
Mortise U.S Mortise with 5 latches
Power supply 4 AA batteries
Low voltage warming < 4.8v
Type Hotel management software
OS Windows XP/Vista
Card type /T5577 default/13.56mh optional
Card reader Encoder
Environment Temperature:0°C~45°C ;Humidity:20%~80%
Backup unlock mechanism Mechanical key
Dimension(L*W) 300*75MM
