JYL-LH2022E Hotel Lock System

Introduction :
The intelligent hotel card lock system offers standalone solution to meet hotels demand on security and management,
which features Mifare card technology and hotel management software.
Silver color and black optional.
The body of lock is made by high quality Zinc alloy die-casting which is strong enough to protect the system from any considerable outside impact.
Lock is powered by four high-capacity alkaline AA batteries that can last up to 20,000 unlocking activities.

Main Features :

1.Standardalone electronic lock with  with 13.56mhz technology
2.Elegant design, which can use in any type of the hotel.
3. High quality Environmental zinc alloy
4. Complete solution with hotel management software and Mifare card encoder.
5.Backup mechanical key for emergency .
6.Size: 325*70*20mm
Main specification :
Material Zinc alloy die-casting

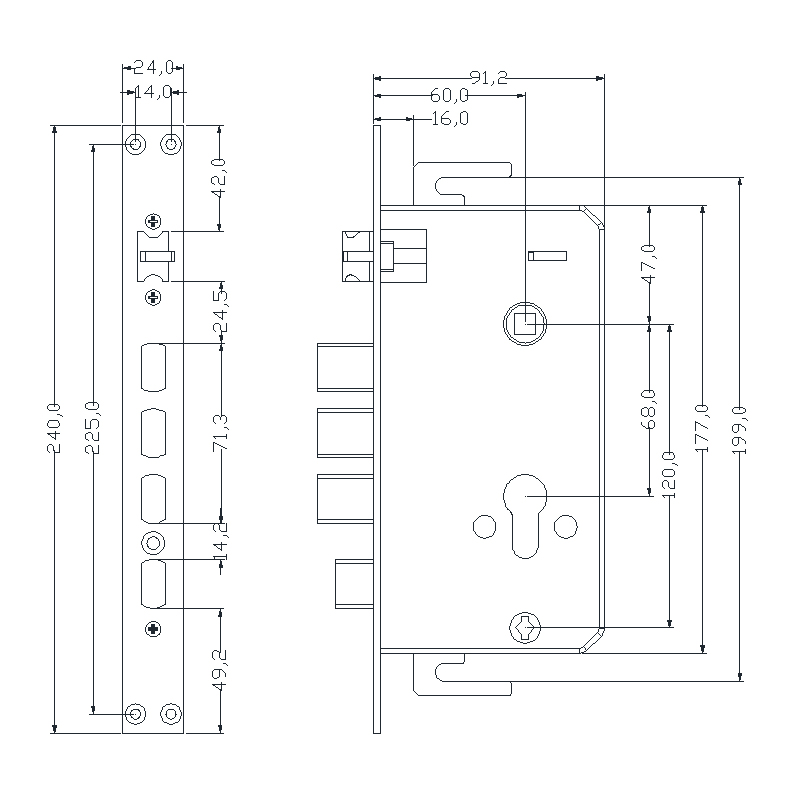

Mortise 6068
Power supply 4 AA batteries
Low voltage warming <4.8v
Type Hotel management software
OS Windows XP/Vista
Card type 13.56mhz
Card reader Encoder
Environment Temperature:0°C~45°C ;Humidity:20%~80%
Backup unlock mechanism Mechanical key
