JYC-LH218E Hotel Lock System

Hotel Lock System--JYC-LH218E

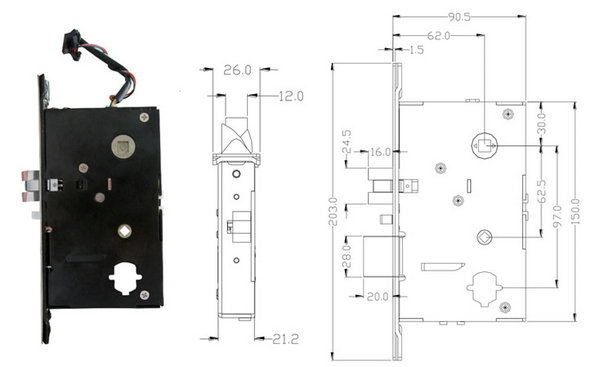

Hotel Lock System--JYC-LH218E Installation diagram

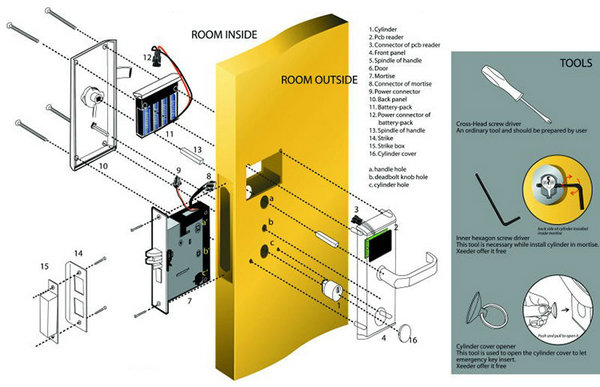

Hotel Lock System Installation diagram

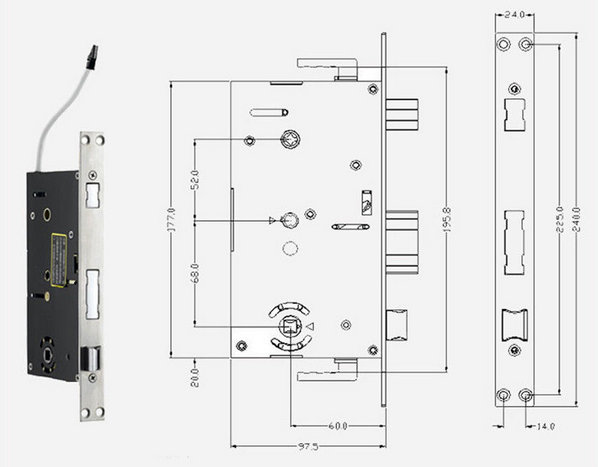

Hotel Lock System--JYC-LH218E Installation diagram(2)

  Introduction :
  The intelligent hotel card lock system offers standalone solution to meet hotel’s demand on security and management, which features 13.56MHz card technology and hotel management software. The style and color of lock fit any type of hotel.
  With the hotel management software.
  The body of lock is made by zinc alloy which is strong enough to protect the system from any considerable outside impact. Lock is powered by four high-capacity alkaline AA batteries that can last up to 20,000 unlocking activities.
  Main Features :
  .Stainless steel, elegant and firm.
  .U.S standard five-latch mortise.
  .Door thickness required from 35mm to 55mm.
  .Low voltage warning.
  .Access record checking.
  .Multi-language software.
  .Reliability.
  Main specification :
Material Stainless steel
Mortise U.S Mortise with latches
Power supply 4 AA batteries
Low voltage warming <4.8v
Software
Type Hotel management software
OS Windows XP/Vista
Card type 13.56mhz
Card reader Encoder
Environment Temperature:0°C~45°C ;Humidity:20%~80%
Backup unlock mechanism Mechanical key
Dimension(L*W*H) 239*78*28MM
