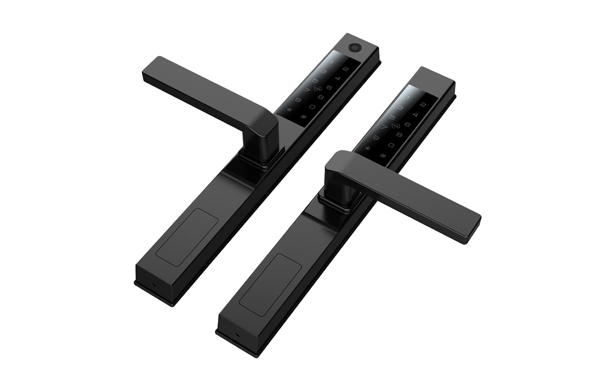

JYF-M2 Tuya/TTlock Smart Door Lock

Time：2025-06-27      Class：Tuya/TTlock Smart Door Lock     Browse：

Dimension Specification (Length*Width*Height)	320*37*67MM
Handle Type	Straight handle
System Language	Chinese/English
Voltage Range	7.4V
Emergency Power Supply	Type - C Interface
Dummy Password	Available
Low - Voltage Alarm	Available
False Attempt Alarm	Available
Anti - Prying Alarm	Optional
Anti - Static Test	Level 4
Protection Against Strong Electromagnetic Interference	Supported
Battery Life	Normal continuous opening for 10,000 times
Handle Self - Closing Service Life	≥ 100,000 times
Protection Grade	IP68
Lock Body Specification	3585T/4085T/4585T/5085T/6085T/7085T/7585T Courtyard Door Lock Body
Ambient Temperature	- 30°C - 60°C
Ambient Humidity	20% - 93%
False Rejection Rate	< 0.1%
False Acceptance Rate	< 0.005%
Unlocking Methods	Standard: Password (199 groups), Card (199 pieces); Mechanical Key (2 pieces), WeChat Mini - Program SweetHome Temporary Password
