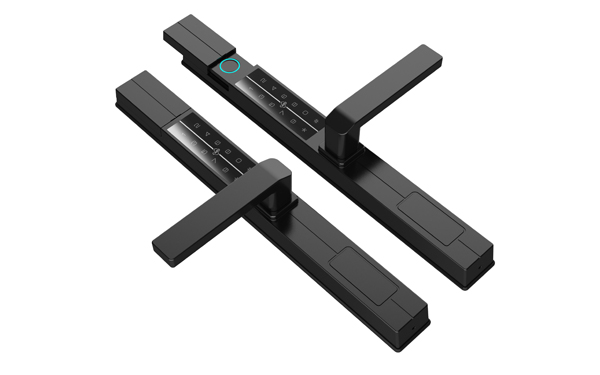

JYF-T30 Tuya/TTlock Smart Door Lock
| Dimension Specification (Length*Width*Height) | Front: 360*37*67MM |
| Handle Type | Straight handle |
| System Language | Chinese/English |
| Voltage Range | 7.4V |

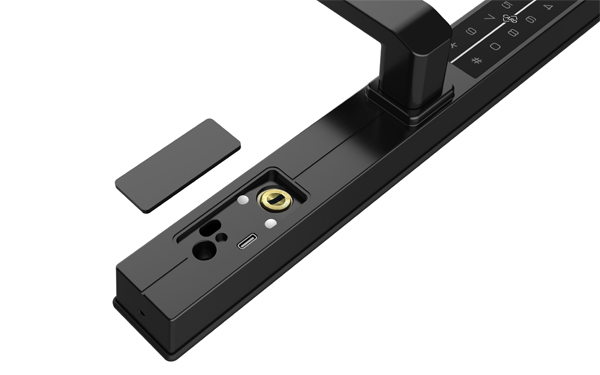

| Emergency Power Supply | Type - C Interface |
| Dummy Password | Available |
| Low - Voltage Alarm | Available |
| False Attempt Alarm | Available |
| Anti - Prying Alarm | Optional |
| Anti - Static Test | Level 4 |
| Protection Against Strong Electromagnetic Interference | Supported |
| Battery Life | Normal continuous opening for 10,000 times |
| Handle Self - Closing Service Life | ≥ 100,000 times |
| Protection Grade | IP68 |
| Lock Body Specification | 3585T/4085T/4585T/5085T/6085T/7085T/7585T Courtyard Door Lock Body |
| Ambient Temperature | - 30°C - 60°C |
| Ambient Humidity | 20% - 93% |
| False Rejection Rate | < 0.1% |
| False Acceptance Rate | < 0.005% |
| Unlocking Methods | Standard: Fingerprint (100 pieces), Password (199 groups), Card (199 pieces); Mechanical Key (2 pieces), WeChat Mini - Program SweetHome Temporary Password |
| Optional: Remote Control, Mobile APP (Tuya Smart) |
